Wheeled Intelligent Bionic Quadruped Dog

B2-W

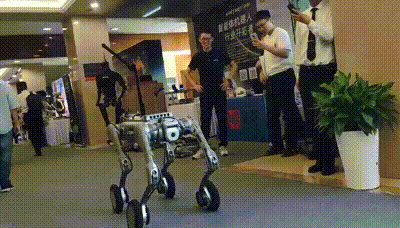

B2-W is a new model of B2, equipped with wheeled feet that have excellent terrain adaptability and flexible mobility. It adopts self-developed high-performance joints to achieve super strong movement ability of complex structures, and can walk stably in various terrains such as grass, stone roads, gravel roads, and even cross stairs, slopes, and roadblocks. In addition, B2-W is equipped with a super long-lasting battery, which enables it to perform well in various application scenarios. Whether it's scientific exploration, emergency rescue, or civilian services, B2-W can bring users an intelligent experience that transcends distance and unleashes efficiency with its outstanding performance and stable performance.

Features

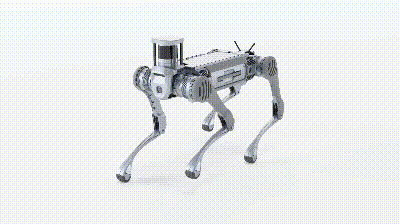

Wheel Foot Replacement Deformation, Breaking Through Range Limitations: B2-W has greatly improved speed and flexibility through innovative wheel foot replacement design. More importantly, this design cleverly addresses the challenge of robot endurance, ensuring long-term stable operation in various environments and meeting the diverse needs of users.

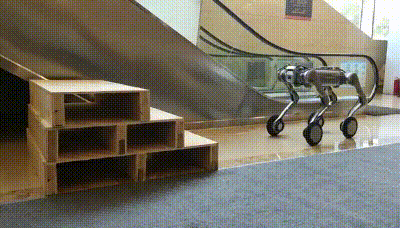

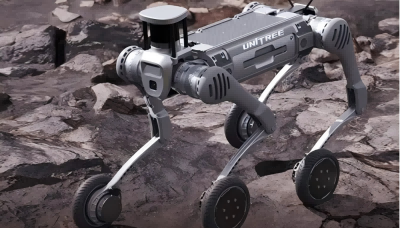

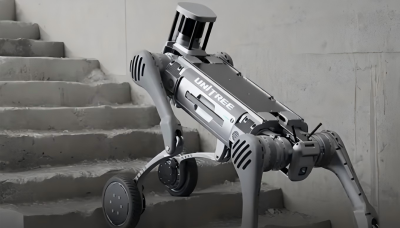

Flexible Walking, Unobstructed Terrain: Self developed high-performance joints fully utilize the super strong movement ability of complex structures. Combining perceptual motion control, maintaining body balance, and being able to navigate various terrains such as stairs, slopes, and roadblocks without obstruction. Through the rapid coordinated response of multiple joints in the legs, walking on bumpy roads is more stable, whether it is grass, stone, or gravel roads, it can work smoothly

Super Endurance, Continuous High Efficiency: B2-W is equipped with a large capacity battery, ensuring its ability to work for a long time in various complex environments, whether it is urban streets or outdoor environments, providing long-lasting and stable power support, and maintaining excellent performance even under continuous high-intensity operations.

Technical index

Technical parameters

Standing size	Approximately 1098mm×550mm×758mm
Weight	Approximately 75kg
Maximum horizontal tension of the platform	100kg
Maximum standing load	120kg
Wheel Diameter	225mm
Maximum torque of the wheel	50N.m
Slope walking ability	>45°

Folded Size	Approximately 950mm×550mm×450mm
Battery capacity	>2kWh, voltage 58V
Maximum platform movement speed	20km/h
Jumping deep trench width	Approximately 2m
Continuous walking load	>40kg
Maximum wheel speed	57rad/s
operation temperature	-20C°~55C°
protection grade	IP67
