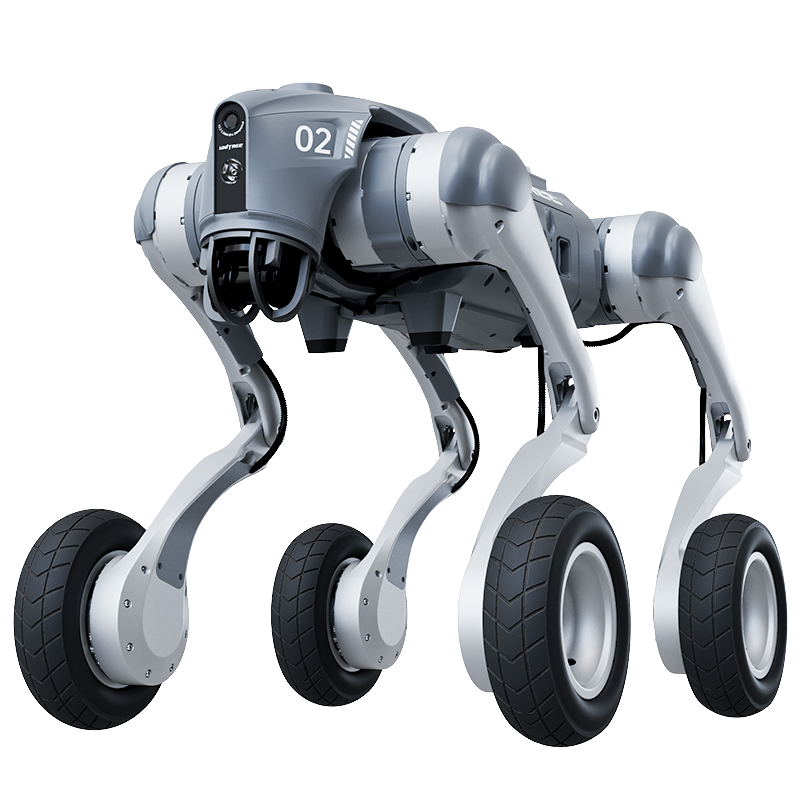

Unitree GO2-W quadruped robot

Go2-W

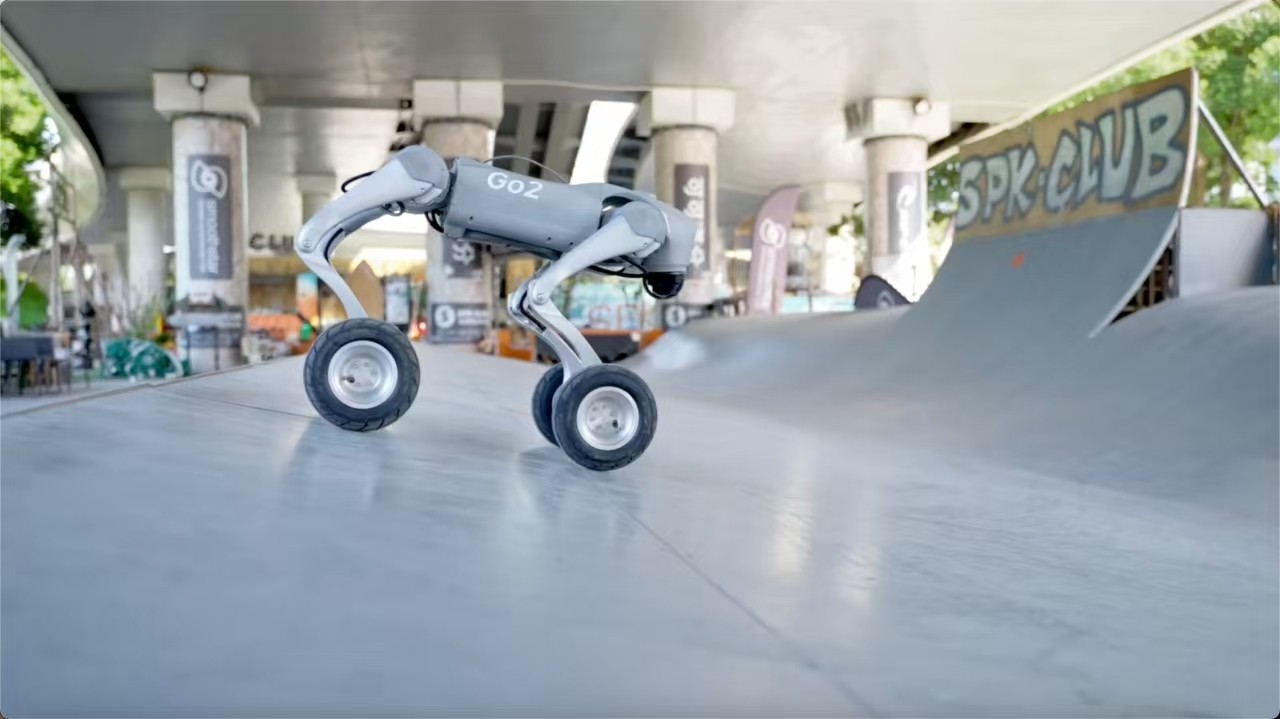

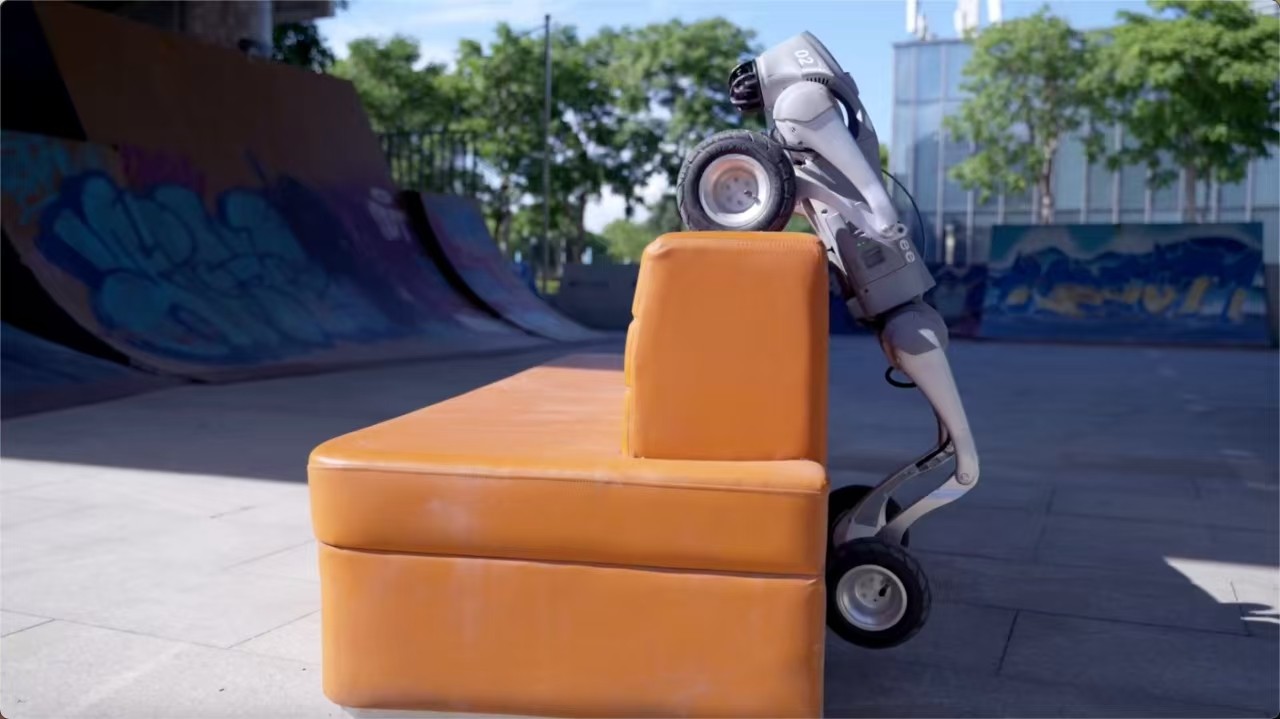

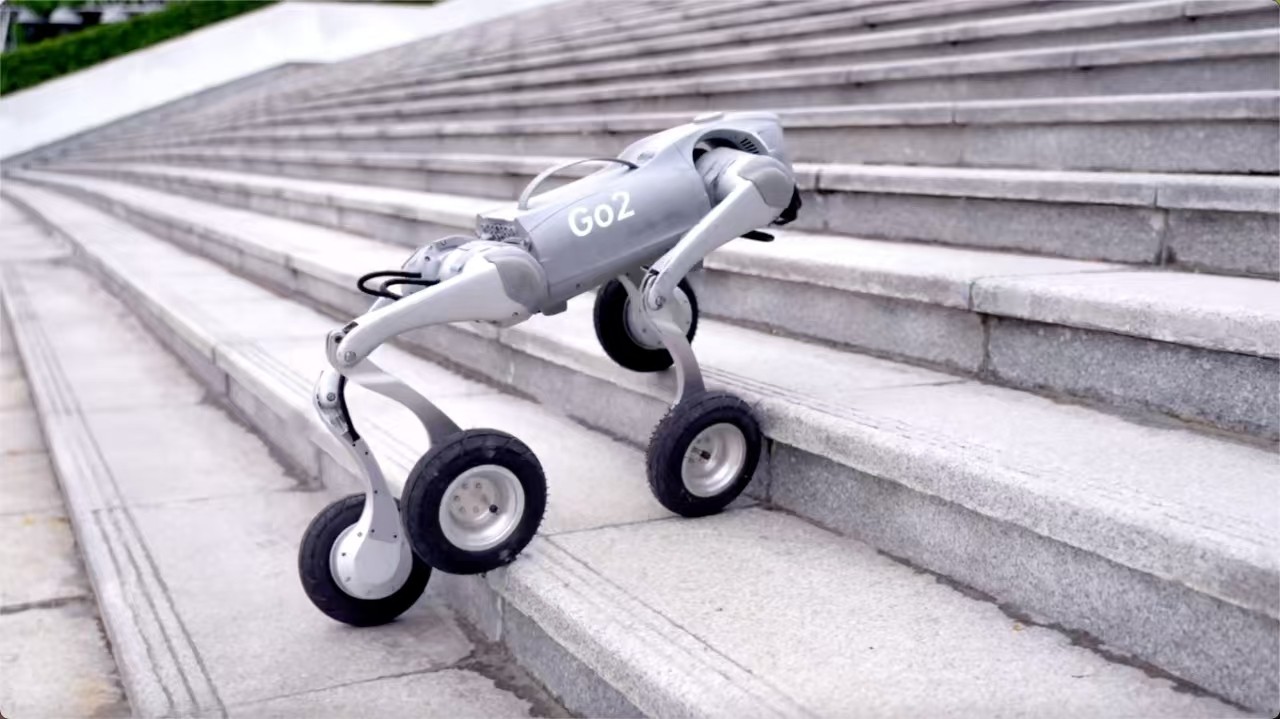

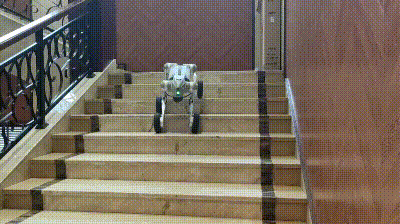

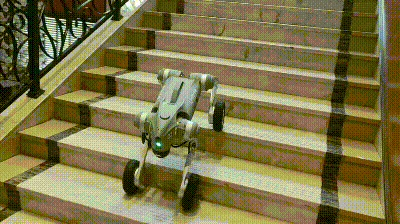

Unitree Go2-W is a new model of Go2, which is equipped with a wheel motor and 7-inch pneumatic tires, which has excellent athletic performance in complex environments, and can successfully complete challenges such as sliding and steep downhill, easily break through 70cm high obstacles, and achieve high and far-sighted vision. In the process of climbing stairs, Go2-W can also achieve light passage, which can subvert the public's conventional operation imagination of robots and realize functions such as cool handstands.

Features

Image transmission + sensor + GPT, strong empowerment
Go2-W has real-time video transmission and radar height map display functions to help users view their surroundings anytime and anywhere. The app also supports the display of data from each sensor, so as to grasp the running status of the robot more clearly and accurately; Through the powerful language capabilities and large knowledge base provided by GPT, Go2-W can fully understand the owner's intentions, and combine sensor information to better understand the world and make decisions.
Powerful power and stable operation
The Go2-W robot has been carefully upgraded to provide a 15,000mAh ultra-long battery life option to ensure that the robot can continue to operate stably in high-intensity working environments. At the same time, the voltage has also been upgraded to 33.6V, which has significantly improved the working efficiency and power of the motor, and further enhanced the operation stability of the robot. Whether it is a long operation or a complex task, the Go2 robot can show strong performance and provide users with efficient and reliable services.
Free combination, unlimited expansion
The Go2-W robot supports a variety of peripheral configurations, including high-computing power modules, three-in-one modules, dual-optical gimbals and navigation radars, realizing the diversification of functions. The addition of these peripherals not only improves the performance of the robot, but also allows it to expand its possibilities to easily cope with various application scenarios.
Flexible joints for improved performance
The Go2-W robot has a highly flexible joint design, which can easily perform a variety of movements such as jumping, stretching and shaking hands, showing extremely high bionic movement ability. The flexibility of its joints allows the robot to appear natural and smooth when performing interactive actions such as happy and fluttering, which greatly improves the user experience. In addition, the robot can sit down freely and complete a variety of sitting movements, all thanks to the significant improvement in its performance, ensuring the stability and accuracy of the robot in various complex movements.
Strong joints for easy crawling
The newly upgraded Go2-W robot has achieved a significant increase in joint torque, with a peak torque of 45N.m, which makes the robot have stronger strength and stability when performing complex actions. In order to further improve the performance, the Go2-W adopts a new internal wiring process, which not only optimizes the internal structure of the robot, but also improves the safety and durability of the line. In the area of the knee joint motor, Go2-W specially adds a heat pipe auxiliary heat dissipation system, which is an innovative design that effectively reduces the temperature of the motor during high-speed operation and ensures the long-term stable operation of the joint.

Technical index

Technical parameters

Standing size

70cm×43cm×50cm

Supply voltage

33.6V

Maximum climbing ramp angle

35°

Aluminum alloy precision joint motor

16

Tires

7-inch pneumatic tires

Battery type

Long-lasting(15000mAh)

Charger

Fast Charging (33.6V 9A)

With battery weight

18kg

Load

About 3kg

Maximum climbing drop height

<70cm

Basic computing power


8-core high-performance CPU

Maximum joint torque

about 45N.m

Expansion Module

Standard 100Tops Computing Power Module(Orin NX)

Battery life

1.5~3h

Warranty

A year
