Industrial Quadruped Bionic Intelligent Robot

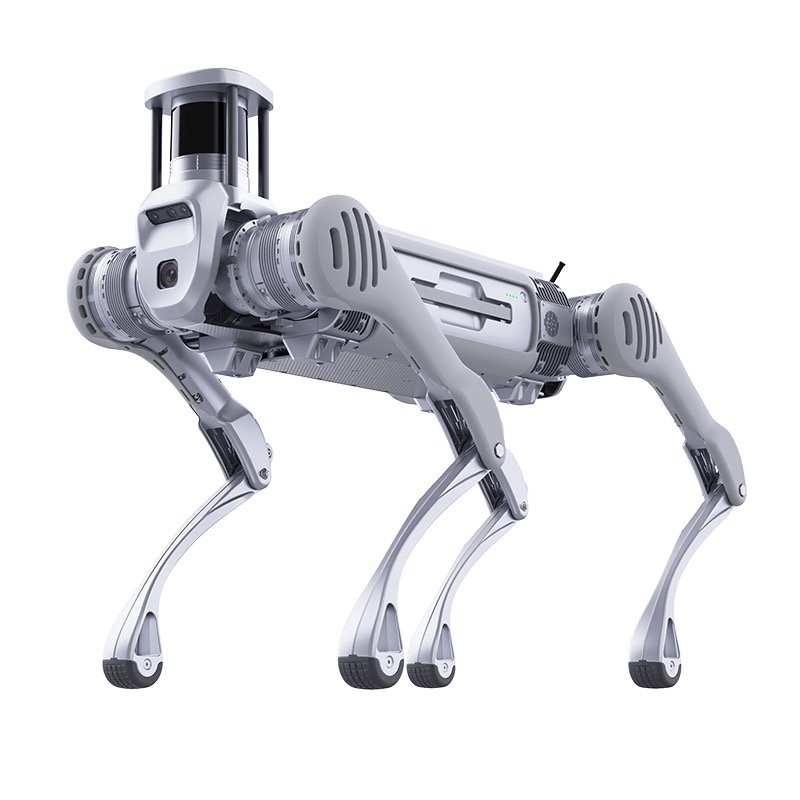

B2

B2, A intelligent quadruped robot that subverts tradition and leads the future. Whether in extreme environments or complex scenarios, B2 can become your versatile assistant with its extraordinary performance and outstanding adaptability. B2 has an amazing running speed, with the fastest reaching over 6 meters per second, and its powerful maximum joint torque, up to 360N. m, allows B2 to easily handle various heavy-duty tasks. It can continuously walk with a load of over 40 kilograms, even under a load of 20 kilograms, for more than 4 hours, with a range of over 15 kilometers. This is not only a display of strength, but also a perfect combination of endurance and efficiency. In addition, B2 is equipped with advanced sensors such as a 32 line vehicle grade LiDAR, high-resolution optical camera, and depth camera, which can perceive the surrounding environment in all directions, achieve precise positioning and obstacle avoidance. Faced with various application scenarios such as power inspection, emergency rescue, and industrial testing, B2 can handle them with ease, optimize environmental perception, and ensure that every task is safe and efficient.

Technical index

Technical parameters

standing size

Approximately 1098mm×450mm×645mm

weight

Approximately 60kg (whole machine, including battery)

continuous walking load

>40kg

climbing ability

Climbing up and down steps with a height of 40cm in a forward direction

slope walking ability

>45°

jumping deep trench width

0.5~1.2m



protection grade

IP67



folded Size

Approximately 880mm×460mm×330mm

battery

Capacity 45Ah (2250Wh), voltage 58V

standing load

Maximum 120kg

stair walking ability

Maximum step height of 20-25cm

operation temperature

-20C~55℃

run speed

>6m/s

maximum jumping distance

>1.6m
