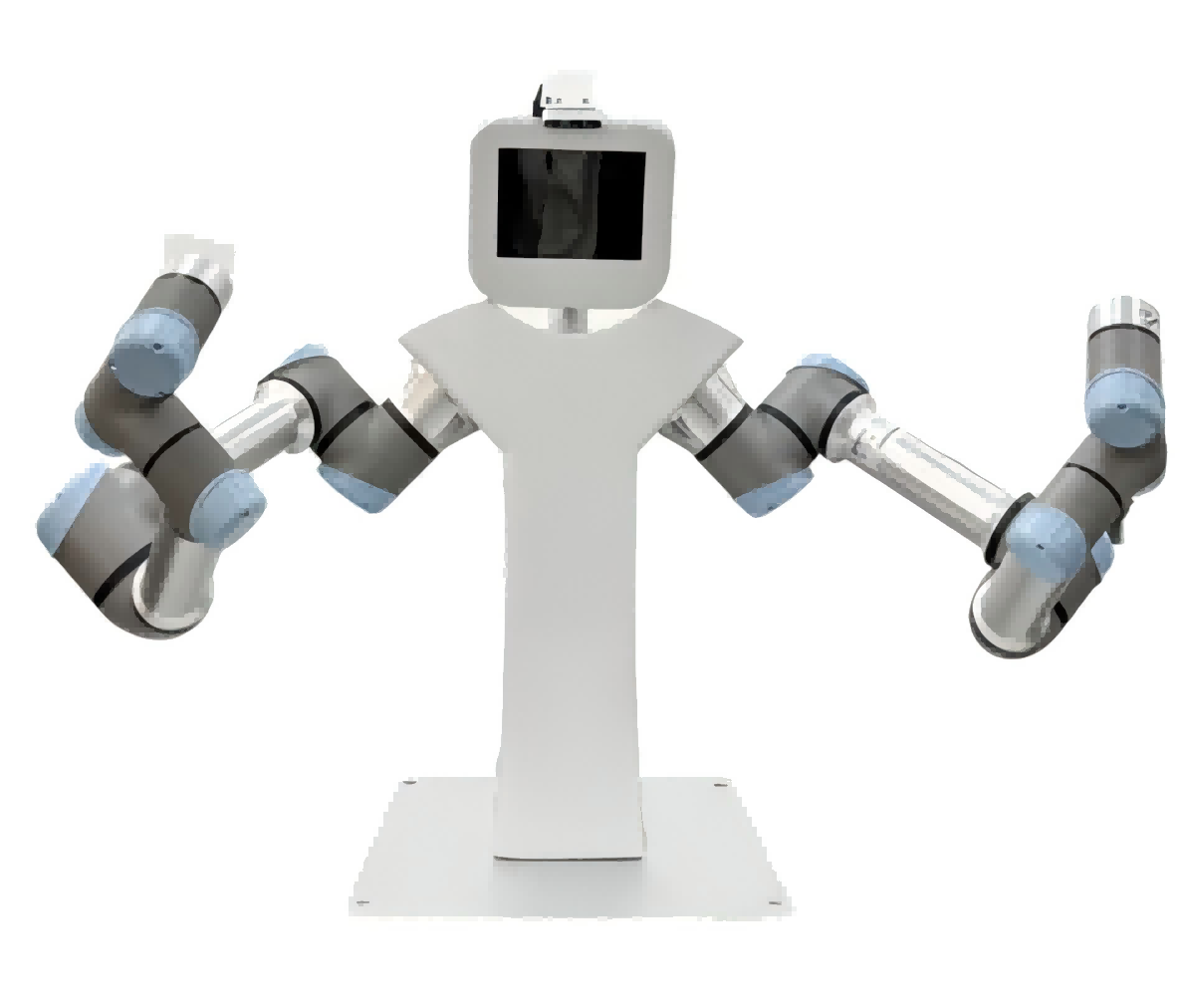

Intelligent Cloud Controlled Dual Arm Robot

QINGLONG 10

The integrated solution of intelligent cloud control full sensing dual arm robot is based on ROS system, which has cloud computing and artificial intelligence technology. Virtual simulation and real-time monitoring can manage multi robot collaboration in the cloud. Simultaneously providing URDF files for machine simulation, machine vision, and dual arm collaborative motion trajectory algorithm research, supporting remote teleoperation control and information transmission information fusion research. In addition, the intelligent cloud control full sensing dual arm system deploys the robot's brain to the cloud, and with the help of cloud servers, it can achieve greater computing power and more efficient data applications. The core technologies include cloud computing, distributed computing, data storage and management, robot motion control, and other aspects.

Features

Ultra Long Distance Cloud Control
The intelligent cloud control full sensing dual arm system deploys the robot's brain to the cloud, and with the help of cloud servers, it can achieve greater computing power. The user's PC can access the main controller from any location, achieving ultra remote control.
Compact and Coordinated
Joints of this robot are flexible and take up little space. Dual arm operation shares a workspace, utilizing communication to coordinate the sequence of arm movements, resulting in a precise, orderly, flexible, and efficient operation process.
Wide Scope of Work
The intelligent cloud controlled full sensing dual arm robot has a wide scope of work, with a maximum length of 1.7m, and can achieve maximum work efficiency in various job scenarios.

Technical index

Technical parameters

working radius

1700mm

degree of freedom

12 rotating joints

radar laser wavelength

905nm

FOV

360°×59°

random ranging error

≤2cm  @10m; ≤3cm @0.2m

payload

10kg

accuracy

±0.03mm

depth image resolution

1280×720 @30fps; 848×480 @90fps

near blind spot

<10cm

mileage

40m @10%resolution; 70m @80%resolution

See our robots working in the most demanding environments for researchers around the world.
