SoftBank NAO

NAO-Edu-V6

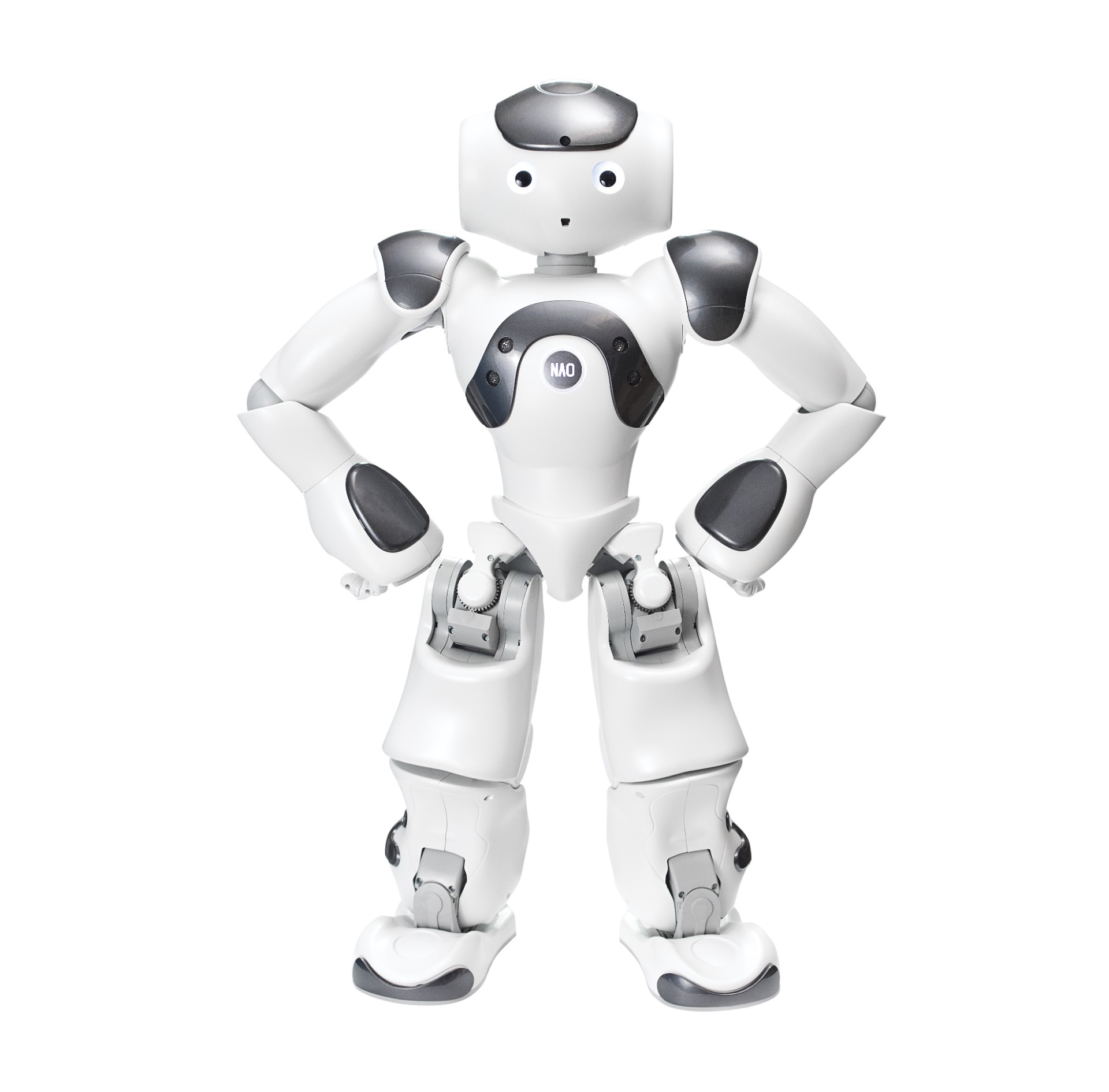

NAO-Edu-V6 is the sixth-generation artificial intelligence robot developed by Aldebaran Robotics in France. It was acquired by SoftBank Group in 2014. The NAO robot is 58cm tall and weighs 5.4kg. The main hardware includes CPU, motherboard, speaker, microphone, infrared sensor, camera, sonar system, Hall effect sensor, steering gear, voice synthesizer, inertial sensor unit, etc. The NAO robot has an open embedded software programming framework and can be used for secondary development. It has a human-like appearance, and obtains the state and force of the robot through sensors, so as to design the control algorithm and write the code to control the motor to realize its intelligent control. Can be applied to: machine vision, audio processing, pattern recognition, positioning navigation, motion control, intelligent system control, information fusion, brain-computer interface, artificial intelligence, machine learning, multi-agent, human-computer interaction, autism, Internet of Things , ROBOCUP competition, Jingtian Cup humanoid robot relay competition, etc.

Features

Strong open performance
The 5th generation of NAO robots opened more than 1,200 API interface library functions, and the 6th generation of NAO robots newly released in 18 years opened more than 1,700 API interfaces for call.
Multiple degrees of freedom

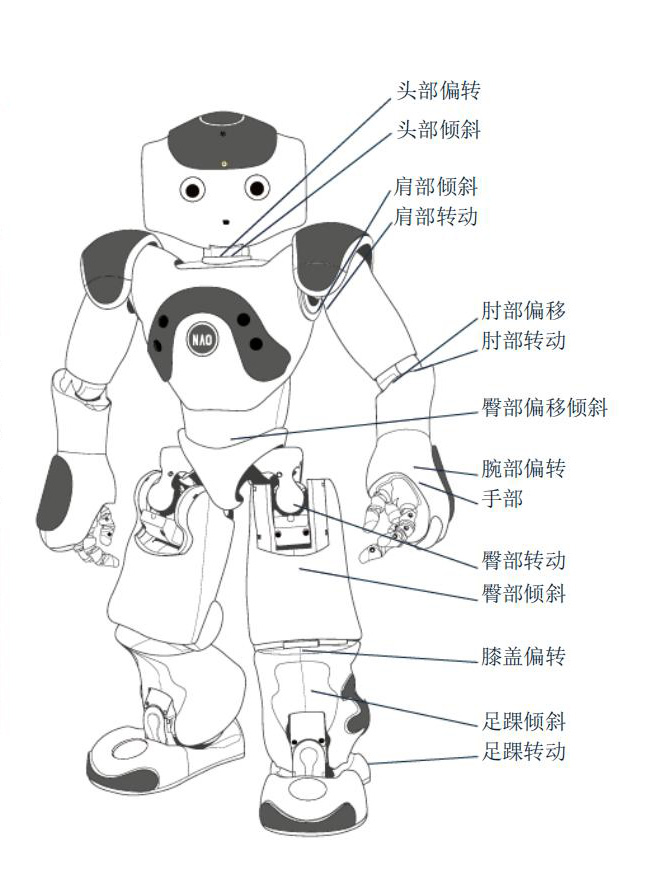

Height 58cm, bipedal humanoid design structure, integrated 25 degrees of freedom. They are: 2 necks, 4 shoulders, 4 elbows, 2 wrists, 2 fingers, 1 waist, 4 hips, 2 knees, and 4 ankles.
Perfect software system

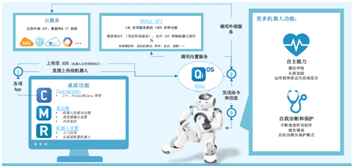

The supporting software includes: Choregraphe visual programming software, you only need to drag the action instruction box library to create the behavior of the robot. MONITOR software, real-time acquisition of NAO robot sensor and joint data. The SDK development kit supports WIN, LINUX and MAC systems. Support C++, Python, java, Matlab, Net and other programming languages. Support ROS.
Strong user base
There are 120 million NAO robots used in scientific research and teaching worldwide. User groups include: Massachusetts Institute of Technology, Harvard University, Nanyang Technological University of Singapore, University of Tokyo, Tsinghua University, Peking University, etc.
Multimodal perception system
There are more than 100 sensors in the whole body, including: 2 vision cameras, 4 microphones for sound source positioning, 2 speakers, 2 infrared sensors, 2 sets of sonar systems, 1 inertial sensor unit including 3-axis accelerator and 3-axis Gyroscope, 36 magnetic encoders, programmable light-emitting diode LED, head and hand touch sensor, front foot anti-collision sensor, foot pressure sensor, etc.

Technical index

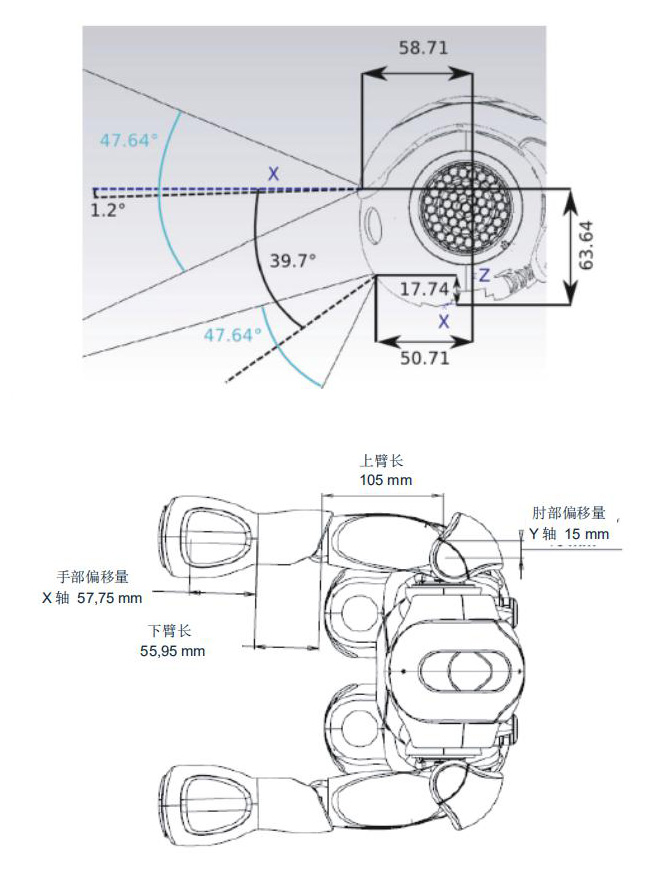

Technical parameters

主要技术参数

Ø  Biped structure;

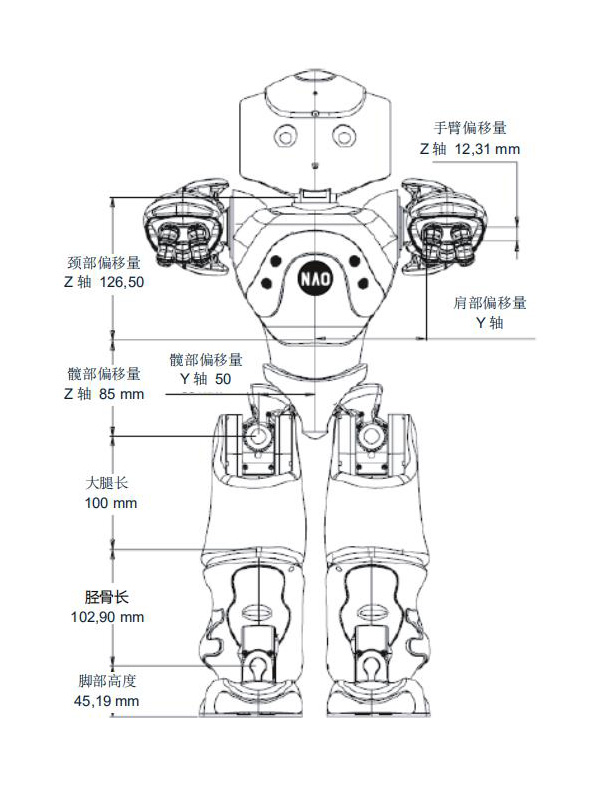

Ø  Dimensions: 574x275x311 mm; Weight: 5.4 kg;


Ø  Degree of freedom: 25;


Ø  Gear set: metal gears in key parts, the rest are metal-ABS hybrid gears;


Ø  Battery working time: 60 minutes under active use and 90 minutes under normal use;


Ø   Equipped with light-emitting diodes for displaying working status;


Ø  Braking part: 36, 12-bit precision Hall effect sensor;


Ø  Equipped with three-axis gyroscope, three-axis accelerometer and anti-collision device;


Ø  2 speakers, 4 omnidirectional microphones, ultrasonic system: 2 transmitters, 2 receivers, 2 infrared meters, 2 cameras, 4 pressure sensors on a single foot.


Fittings
Configure a custom platform. Explore all accessories.

RobocupStandard football field

Custom trolley case

Portable trolley case

NAO-Clo tight top

NAO professional uniforms

"NAO Robot Programming"

Supporting experimental textbooks, ppt lecture notes, robot competition venue production

See our robots working in the most demanding environments for researchers around the world.
